1500W IGBT Module Water Cooling Heat Sink Aluminum Plate Metal Liquid-cooled Heat Sink
Dettagli:
| Luogo di origine: | Dongguan ， Guangdong, Cina |
| Marca: | Uchi |
| Certificazione: | SMC |
| Numero di modello: | Piastra di raffreddamento 17 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100pcs |
|---|---|
| Prezzo: | Negoziabile |
| Termini di pagamento: | T/T, PayPal, Western Union, MoneyGram |
| Capacità di alimentazione: | 50000000pcs al mese |
|
Informazioni dettagliate |
|||
| Materiale: | Lega di alluminio | Pressione di esercizio: | Almeno 1 barra |
|---|---|---|---|
| Finitura superficiale: | Finitura al mulino o anodizzazione | Dimensione del pacchetto singolo: | 22,5X14,5X15cm |
| Peso lordo singolo: | 1.350 Kg | Garanzia: | 3 anni |
| Evidenziare: | 1500W IGBT water cooling heat sink,aluminum liquid-cooled heat sink,metal water cooling plate |
||
Descrizione di prodotto

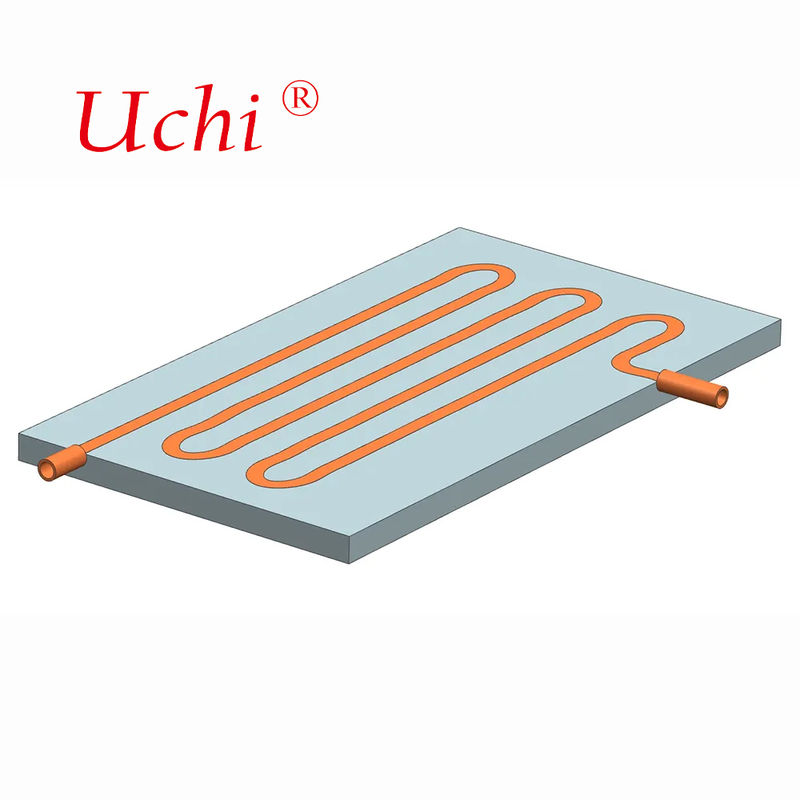

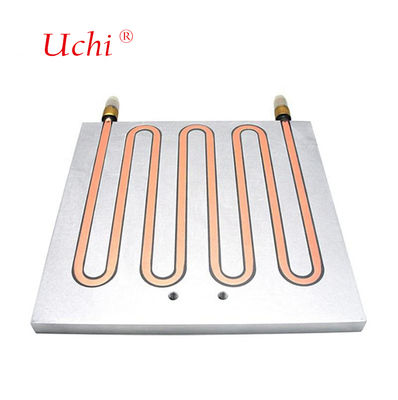

1500W IGBT Module Water Cooling Heat Sink
Customized aluminum liquid cold plate designed for high power 1500W IGBT module cooling, featuring FSW bonding technique and a flatness of 0.1mm. It ensures efficient cooling with recommended coolants like deionized water and operates at a minimum pressure of 1 bar. Surface treatment includes chromate finish, providing corrosion resistance and long service life.
Product Specifications
| Item | Specification |
|---|---|
| Material | Aluminum plate, copper tube |
| Flatness | 0.1 mm |
| Cooling capacity | 200W |
| Recommended Coolants | Deionized Water, Inhibited Glycol and Water, Dielectric fluid |
| Surface Roughness | Ra1.6 |
| Bonding Technique | FSW, Pressure tube |
| Surface treatment | Chromate |
| Working Pressure | At least 1 bar |
| Lead time | Within 3 weeks |
| MOQ | Samples or small orders acceptable |
| Quantity control | Full inspection |
Advanced Brazing Technology
Our vacuum brazing process joins aluminum plates using a filler metal with a lower melting point than the base material, creating extremely strong joints without residual corrosive flux. This high-end technology offers uniform heating, precise temperature control, and eliminates post-cleaning requirements while minimizing part distortion.
Key Applications
- Lasers and medical equipment
- EV power battery pack cooling
- Power electronics and motor drive devices
- Microwave 5G transmission systems
- Renewable energy systems
- IGBT and Power Semi-Conductor Systems
- Data centers and industrial power applications
- Defense systems and avionics
- Fuel cells and traction systems
Production Capabilities
Our manufacturing facility includes 25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Quality Assurance
We maintain rigorous quality standards with 1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
