Copper Skived Process Fins Heat Sink Fins For High Power Thermal Solutions
Dettagli:
| Luogo di origine: | Dongguan, Guangdong, Cina |
| Marca: | Uchi |
| Certificazione: | SMC |
| Numero di modello: | Radiatore |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 pezzi |
|---|---|
| Prezzo: | 1300-1500 dollars |
| Tempi di consegna: | Non limitato |
| Termini di pagamento: | T/T, PayPal, Western Union, MoneyGram |
| Capacità di alimentazione: | 50000000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Materiale: | Rame | Misurare: | 54*50*46 mm |
|---|---|---|---|
| Peso:: | 0,464 kg | Tecnologia: | Pinna da smussatura |
| caratteristica: | Maggiore potenza refrigerante | ||
| Evidenziare: | copper skived heat sink fins,high power thermal solution fins,liquid cooling plate heat sink |
||
Descrizione di prodotto

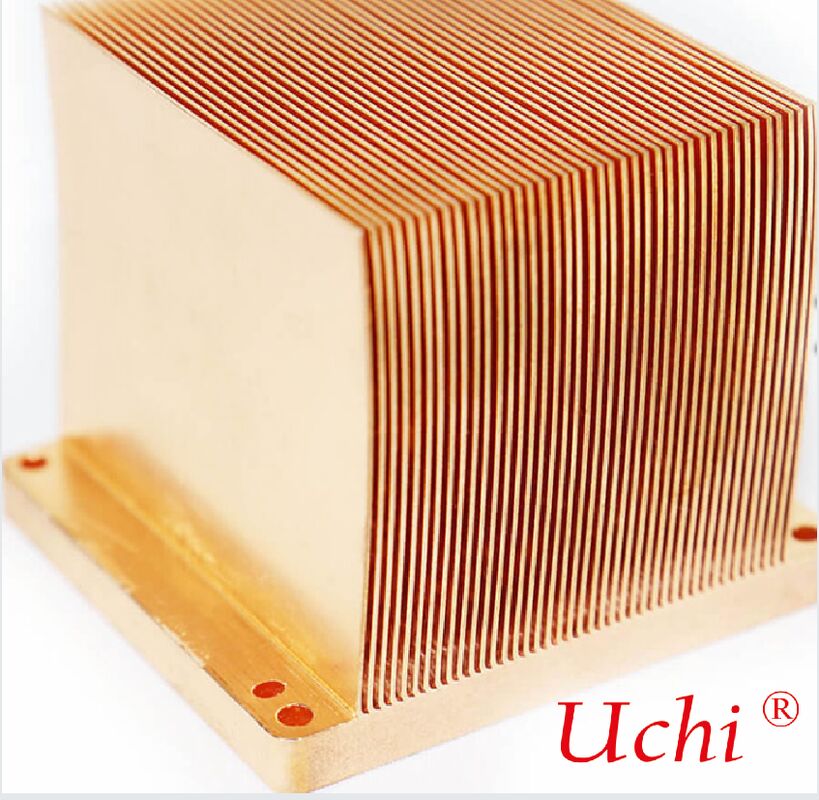

Copper Skived Process Fins Heat Sink Fins for High Power Thermal Solutions
Product parameters of Copper skived process fins heat sink fins for high power thermal solutions
Material: copper
Size:54*50*46mm
Weight: 0.464kg
Technology: Skiving fin
Feature: Higher cooling power and better conductivity
Surface treatment: Passivation
Heat cooling power: 168W
Product advantage of Copper skived process fins heat sink fins for high power thermal solutions
Skiving fin is the process of relieving Al teeth. The profile is processed into a specific model, such as radiator, etc. with the skiving fin machine tool, the finished product is the skiving fin heat sink.
The skiving fin heat sink is a kind of gap structure with the same sequence formed by cutting the material out of a certain angle by mechanical action of the strip profile (aluminum and copper). It is used to solve the heat dissipation of high-power devices under the condition of air cooling and heat dissipation, and its heat dissipation efficiency can be increased by 8-15% compared with the other heat sink.
With the large-scale application,our skiving fin radiator technology are more mature, the level of automation is gradually improved, our cost and reliability advantages are remarkable. It is used in UPS, base station, charging pile, frequency converter, controller, wind power converter, SVG, LED lamp.
